| JIAKARI downlight | WALL washer |
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard | SLEEK | Pin hole | SLEEK | SLEEK | |||||
| Glare cut off angle 30 | Glare cut off angle 40 | Glare cut off angle 30 | Glare cut off angle 40 | Wide I Flood | Spread | Pin-hole | WALL washer | ||
| COB 13W |   |
  |
|||||||
| COB 6.5W |   |
  |
  |
  |
  |
  |
  |
  |
|
| COB 4.5W |   |
  |
  |
  |
  |
  |
|||
| Halogen28/20W 12V |   |
||||||||

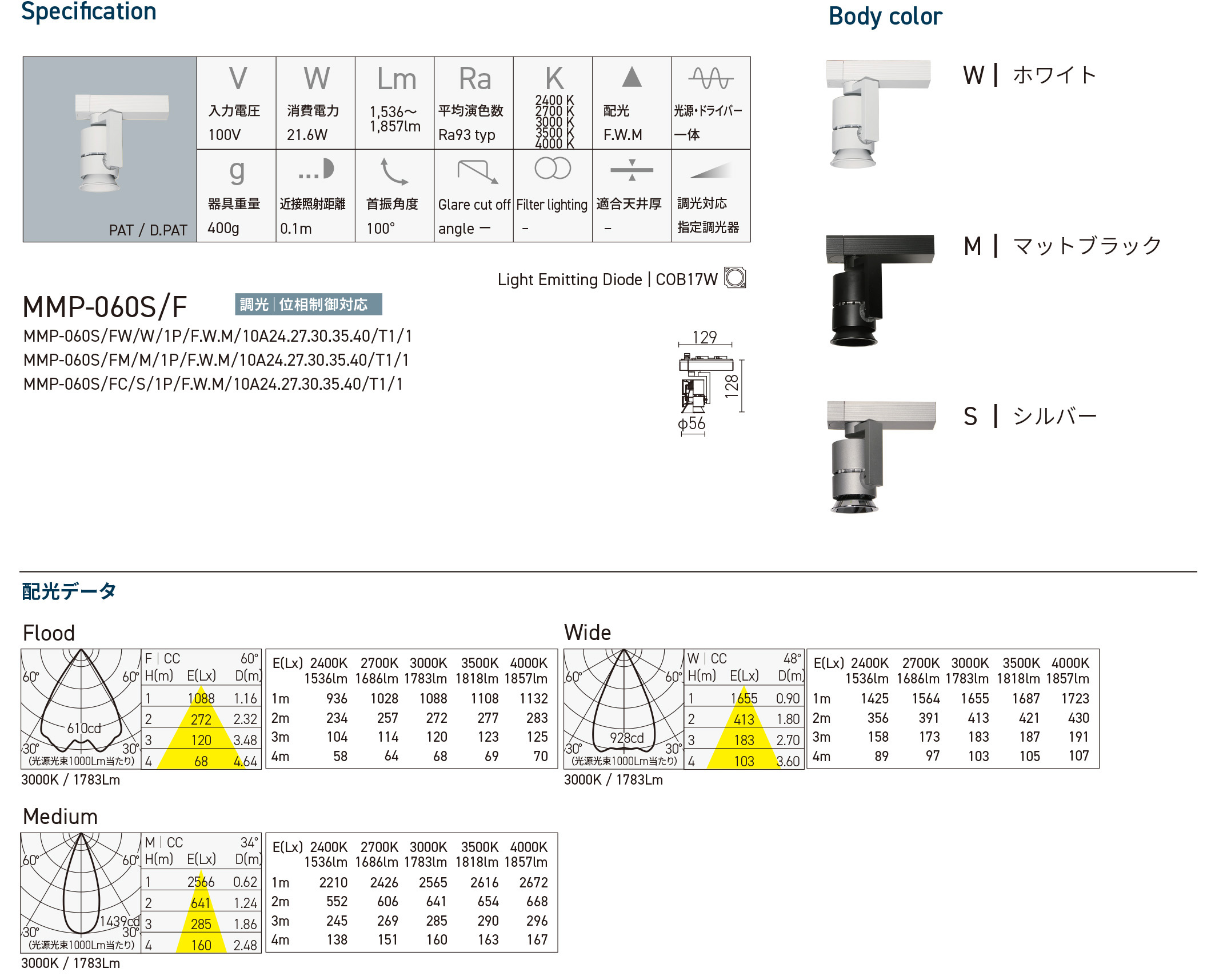

Foundation
MUSEUM platform model
Ra93typ
色温度：2400/2700/3000/3500/4000K
調光対応：位相制御
カラー：ホワイト/マットブラック/シルバー
光源・ドライバー一体
| 仕様書・取付取扱説明書・小組画像 | 姿図・CADデータ | 照明設計用配光データ（IESデータ） |
|---|---|---|
 |
 |
 |
仕様書
取付取扱説明書
小組データ
|

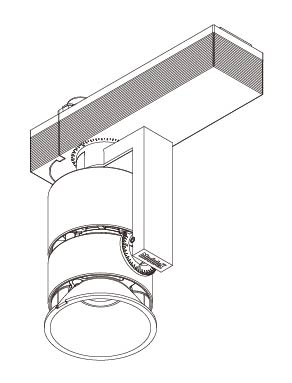

姿図
|

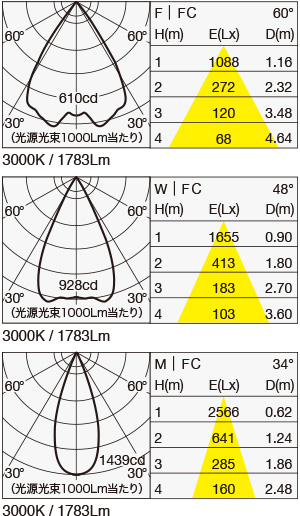

Flood
Wide
Medium
|
| 配光 | フレームカラー | 2400K | 2700K | 3000K | 3500K | 4000K |
|---|---|---|---|---|---|---|

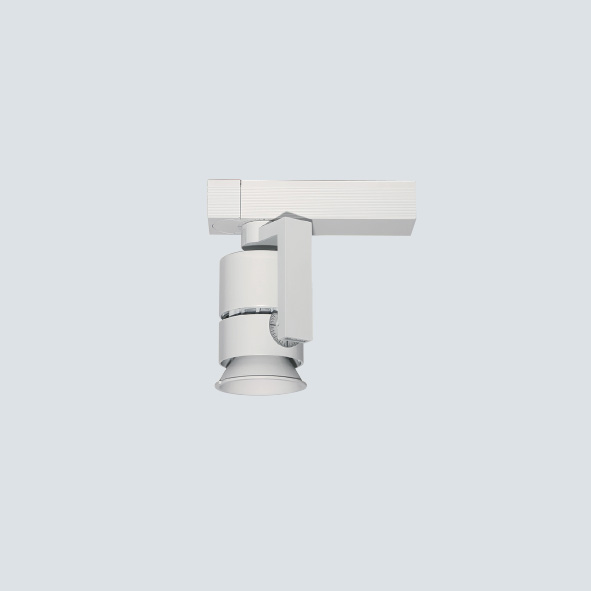

| Flood | ホワイト | MMP-060S/FW/W/1P/F/10A24/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/F/10A27/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/F/10A30/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/F/10A35/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/F/10A40/T1/1 ¥42,000 |

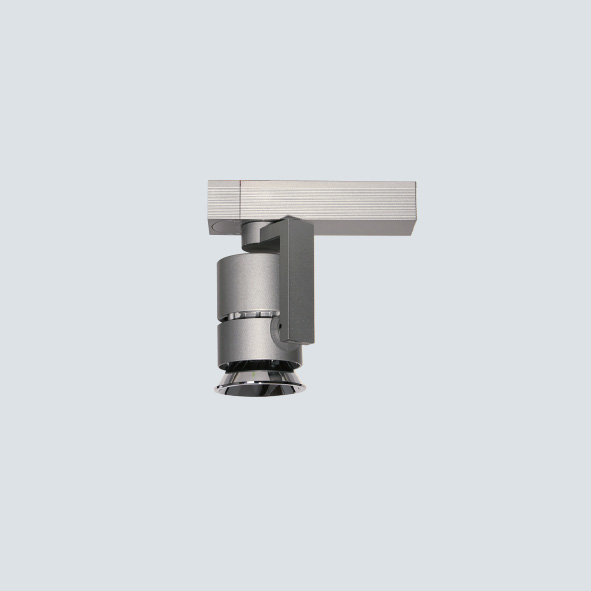

| シルバー | MMP-060S/FC/S/1P/F/10A24/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/F/10A27/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/F/10A30/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/F/10A35/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/F/10A40/T1/1 ¥44,500 |
|

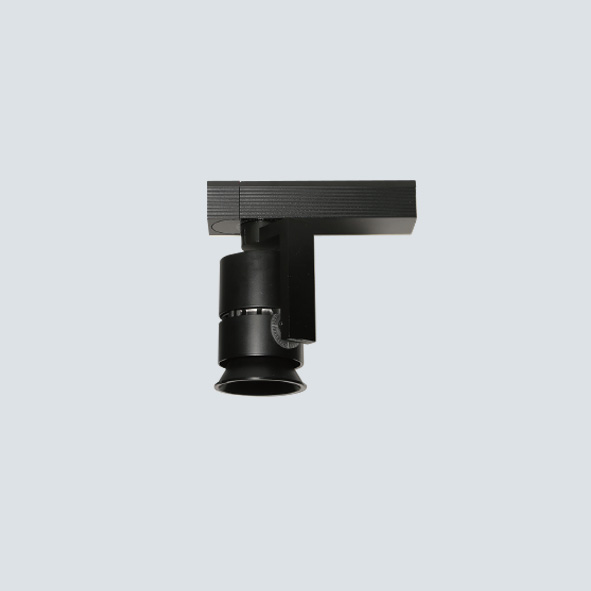

| マットブラック | MMP-060S/FM/M/1P/F/10A24/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/F/10A27/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/F/10A30/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/F/10A35/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/F/10A40/T1/1 ¥42,000 |
|
| Medium | ホワイト | MMP-060S/FW/W/1P/M/10A24/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/M/10A27/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/M/10A30/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/M/10A35/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/M/10A40/T1/1 ¥42,000 |
| シルバー | MMP-060S/FC/S/1P/M/10A24/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/M/10A27/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/M/10A30/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/M/10A35/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/M/10A40/T1/1 ¥44,500 |
|
| マットブラック | MMP-060S/FM/M/1P/M/10A24/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/M/10A27/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/M/10A30/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/M/10A35/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/M/10A40/T1/1 ¥42,000 |
|
| Wide | ホワイト | MMP-060S/FW/W/1P/W/10A24/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/W/10A27/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/W/10A30/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/W/10A35/T1/1 ¥42,000 |
MMP-060S/FW/W/1P/W/10A40/T1/1 ¥42,000 |
| シルバー | MMP-060S/FC/S/1P/W/10A24/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/W/10A27/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/W/10A30/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/W/10A35/T1/1 ¥44,500 |
MMP-060S/FC/S/1P/W/10A40/T1/1 ¥44,500 |
|
| マットブラック | MMP-060S/FM/M/1P/W/10A24/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/W/10A27/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/W/10A30/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/W/10A35/T1/1 ¥42,000 |
MMP-060S/FM/M/1P/W/10A40/T1/1 ¥42,000 |
Made In TOKYO
ModuleX はこだわりぬいた光学技術の照明器具をすべて自社開発、
自社生産し続けています。
（ModuleX factory：東京都葛飾区）
照明器具本体の通電部品はすべて全数検査を行ってから組み立て工程へ進めます。
ModuleX Green technologies
なによりもまず、長く使えるために可変性を備えた設計や耐久性を考慮した上で、再利用可能な材料の選定や梱包材の使用を推進して地球環境の負荷低減を進めています
業界の基準に頼る事無く、自社独自の検査、分析を綿密に行った上で工学的な見解にもとづいた保証内容を定めています。
